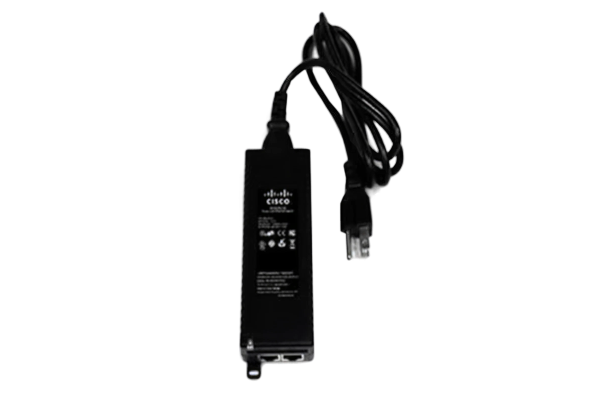

Cisco AIR PWRINJ7= – 60 W Power Injector for Catalyst & Aironet APs (802.3bt / UPoE)

Cisco AIR-PWRINJ7= is a compact 60 W UPoE (802.3bt) injector that delivers multigigabit data and power over a single Ethernet cable for high-power Cisco access points.

4-Year Warranty | 30 Day Returns | 30 Day Exchange

Product Specification

Specification	Details
Product Code	AIR‑PWRINJ7=
PoE Standard	IEEE 802.3bt (Cisco UPoE), backward compatible
Max Power Output	60 W nominal, 54–57 V DC @ ≤1.161 A
Data Ports	2× RJ‑45 (10/100/1G/2.5G/5G)
Ethernet Speed Support	10 Mb–5 Gb auto‑negotiation
AC Input Range	90–264 VAC, 47–63 Hz; C14 inlet
Dimensions (L×W×H)	≈140×65×38 mm (5.5×2.6×1.5 in)
Weight	≈227 g (8 oz)
Efficiency	>88 % @115 VAC, >89 % @230 VAC
No‑Load Power	<0.21 W @115 VAC, <0.15 W @230 VAC
Operating Temp	–10 °C to +40 °C
Storage Temp	–25 °C to +65 °C
Humidity	Up to 95 % non-condensing
Protection	Short‑circuit, overload, surge protection

Product Code	AIR PWRINJ7=
Dimensions (Length x Width)	≈140×65×38 mm (5.5×2.6×1.5 in)
Weight	≈227 g (8 oz)
Operating Temperature	–10 °C to +40 °C
Storage Temperature	–25 °C to +65 °C
Ethernet Ports	10 Mb–5 Gb auto negotiation
Ingress Protection	Short circuit, overload, surge protection
PoE Standard	IEEE 802.3bt (Cisco UPoE), backward compatible
Power Output	60 W nominal, 54–57 V DC @ ≤1.161 A
Data Ports	2× RJ 45 (10/100/1G/2.5G/5G)
Humidity	Up to 95 % non-condensing
AC Input Range	90–264 VAC, 47–63 Hz; C14 inlet
Efficiency	>88 % @115 VAC, >89 % @230 VAC
No Load Power	<0.21 W @115 VAC, <0.15 W @230 VAC

Cisco AIR PWRINJ7= – 60 W Power Injector for Catalyst & Aironet APs (802.3bt / UPoE)

Product Overview and Features

Overview

The Cisco AIR‑PWRINJ7= is a high‑capacity Power over Ethernet (PoE) midspan injector engineered to support the latest high-power Cisco access points, including Catalyst and Aironet models requiring up to 60 W via Cisco UPoE (802.3bt). It integrates both 5G multigigabit data and power delivery over a single Ethernet cable, eliminating the need for local AC power at access point locations. It dynamically negotiates power, delivering 54–57 V DC at up to 1.161 A, and will only power compliant devices—protecting non‑compliant gear from accidental damage Encased in a compact, mountable chassis with mounting tabs and a single status LED indicating power states, the AIR‑PWRINJ7= ensures reliable operation with high MTBF and worldwide AC compatibility while supporting fast Ethernet speeds up to 5 Gb/s. This injector is ideal for powering high-end Wi‑Fi 6/6E access points, IP cameras, network convergence hardware, and multigigabit DSLAMs in environment where power access is limited or costly.

Whats in the Box

What’s in the Box

1× Cisco AIR‑PWRINJ7= power injector
Quick-installation and mounting guide

Use Case

Use Case Scenarios

Catalyst 9100 and 9200 Series AP deployments without PoE switches
High-performance outdoor APs needing 60 W power
Audio-video systems requiring fast data and PoE
Network convergence devices like NCS routers or edge switches
Multigigabit capable IP cameras and security sensors
Remote deployments and pop-up wireless networks
Industrial mesh root nodes with high power demands
Hospitality installations in ceilings with no power access
Smart building IoT hubs requiring PoE+
Environments transitioning to Wi‑Fi 6/6E with higher power needs

USP

Unique Selling Propositions (USP)

Full 60 W UPoE support for the most power-hungry APs
Multigigabit data over one cable up to 5 Gb/s
Smart protection for overload, short-circuit, non‑compliance
Plug-and-play install with mounting tabs and integrated power supply

Port Compatibility

Port	Type & Function	Notes
Data In	RJ‑45 5 GbE (from switch)	For data only
Power+Data Out	RJ‑45 5 GbE (to AP) – PoE+ & UPoE output	Powers AP and provides full data speed
AC Input	C14 connector (100–240 VAC)	Includes power cable

LED Behaviour

LED	State	Meaning
Green Blink	Idle w/ AC power	Injector powered, awaiting device connection
Green Solid	Active PoE	Providing power to AP (30–60 W)
Rapid Blink	Fault/Error	No load, overload, or non‑compliant device

More About Cisco AIR PWRINJ7= – 60 W Power Injector for Catalyst & Aironet APs (802.3bt / UPoE)

Why Choose Cisco AIR‑PWRINJ7=

Powers modern Wi‑Fi 6/6E APs fully with UPoE
Maintains gigabit data performance at full load
Protects investment with Cisco-grade safety features
Versatile installation—rack, wall, or ceiling
Compatible across Catalyst and Aironet APs
Supports transition to higher-power wireless deployments
Simplifies infrastructure—one injector for multiple AP types
Eliminates need to re-cable or replace switches
Reduces network complexity and costs
Backed by Cisco reliability and global support

Next Steps

Verify your AP requires >30 W (Catalyst 9100/9200 etc.)
Confirm Cat5e or better cabling is in place (up to 100 m)
Mount the injector near a non‑PoE switch or AC outlet
Order region-appropriate AC power cord
Complete install and verify LED indicates solid green
Document injector serial in your network asset database

Pre Sales Questions

We understand that making the right purchase decision is important. Below, you’ll find answers to common pre-sales questions about this product.

How much power can this deliver? +

Up to 60 W via 802.3bt UPoE (Cisco proprietary).

Which access points require this? +

Catalyst 9100/9200 series and high-end Aironet models needing >30 W

Does it support multigigabit? +

Yes, up to 5 Gb/s over CAT5e/CAT6

Is there built-in protection? +

Yes-surge, load, short, and disconnect safeguards.

What is the operating temperature? +

–10 °C to +40 °C at full load.

Can I mount it on a rack or wall? +

Yes-built-in tabs allow secure mounting.

Does it require configuration? +

No-all features work automatically via PoE.

Will non Cisco APs work? +

Only standards-compatible devices; Cisco non-compliant gear will be blocked.

How long can the cable be? +

Up to 100 m Cat5e or higher for both data and power.

What does a rapid blink mean? +

Indicates a fault—like invalid load or power issue.
