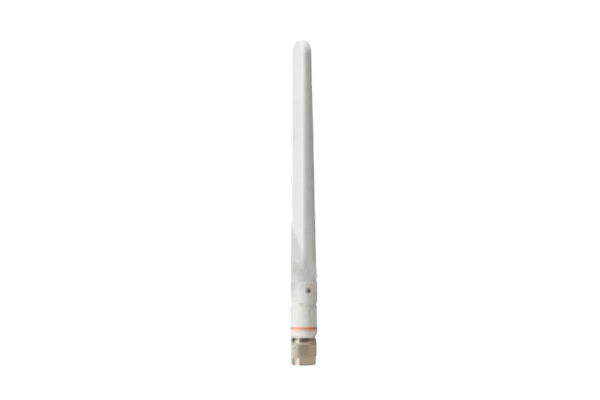

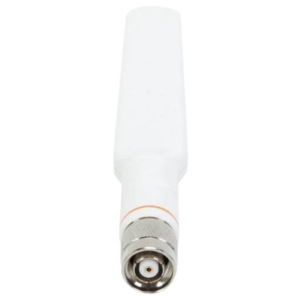

Cisco AIR-ANT2524DW-R – Dual-Band Dipole Antenna (Indoor, RP-TNC)

Cisco AIR-ANT2524DW-R is a dual-band indoor antenna for 2.4 GHz and 5 GHz, designed to improve Wi-Fi coverage with easy plug-and-play installation and reliable enterprise performance.

1 × Cisco AIR-ANT2524DW-R Dual-Band Antenna
Regulatory and warranty documentation (if included with AP bundle)
Quick Install Note (bundled with access point only)

4-Year Warranty | 30 Day Returns | 30 Day Exchange

Product Specification

Specification	Details
Product Code	AIR-ANT2524DW-R
Antenna Type	Omnidirectional dipole
Supported Frequencies	2.4–2.5 GHz and 5.15–5.85 GHz
Peak Gain	2 dBi (2.4 GHz), 4 dBi (5 GHz)
VSWR	< 2:1
Connector	RP-TNC male
Polarization	Linear
Beamwidth (Elevation)	63° @ 2.4 GHz, 39° @ 5 GHz
Impedance	50 Ohms
Dimensions (Length x Width)	168.5 mm × 21 mm
Radome Length	124 mm
Weight	37 g (1.3 oz)
Operating Temperature	–20°C to +60°C
Storage Temperature	–40°C to +85°C
Environment	Indoor

Product Code	AIR-ANT2524DW-R
Antenna Type	Omnidirectional dipole
Supported Frequencies	2.4–2.5 GHz and 5.15–5.85 GHz
Peak Gain	2 dBi (2.4 GHz), 4 dBi (5 GHz)
VSWR	< 2:1
Connector	RP-TNC male
Polarization	Linear
Beamwidth (Elevation)	63° @ 2.4 GHz, 39° @ 5 GHz
Impedance	50 Ohms
Dimensions (Length x Width)	168.5 mm × 21 mm
Radome Length	124 mm
Weight	37 g (1.3 oz)
Operating Temperature	–20°C to +60°C
Storage Temperature	–40°C to +85°C
Environment	Indoor

Cisco AIR-ANT2524DW-R – Dual-Band Dipole Antenna (Indoor, RP-TNC)

Product Overview and Features

Featuring 2 dBi gain at 2.4 GHz and 4 dBi gain at 5 GHz, this antenna is ideal for balancing performance with coverage consistency across enterprise deployments. The RP-TNC male plug and articulating joint enable seamless integration into ceiling or wall-mounted APs, providing both tilt and swivel adjustments for ideal RF alignment.

With no external power or software required, and full Cisco compatibility, the AIR-ANT2524DW-R supports plug-and-play deployment in commercial offices, classrooms, clinics, conference halls, and retail spaces. Its white radome enclosure ensures minimal visual impact while maintaining durable operational reliability.

1 × Cisco AIR-ANT2524DW-R Dual-Band Antenna
Regulatory and warranty documentation (if included with AP bundle)
Quick Install Note (bundled with access point only)

Enterprise Offices – Covers floorplans with dual-band client devices across cubicles and meeting zones
Educational Institutions – Seamless indoor coverage in lecture halls, classrooms, and libraries
Healthcare Environments – Supports wireless charting and devices in patient rooms and nurse stations
Retail Stores – Ensures consistent AP-to-client signal in aisles and POS areas
Conference Rooms – Reliable wireless for presentations, VoIP, and streaming
Hospitality Suites – Wi-Fi coverage inside hotel rooms or lobby APs
Indoor Warehouses – Enhances handheld scanner connectivity along inventory lanes
Reception Zones – High-performance coverage for front office client access
Training & Lab Centers – Wi-Fi for remote desktop, simulations, or collaborative learning tools
Smart Building Infrastructure – Provides backhaul for sensors and BLE IoT systems

Dual-Band Flexibility – 2.4 GHz and 5 GHz support in a single antenna
Cisco Optimized Tuning – Designed to work seamlessly with Aironet and Catalyst APs
Flexible Installation – 360° swivel and 90° tilt joint for versatile mounting
No Software Needed – Zero configuration, plug-and-play simplicity

Access Point Model	Connector	Compatibility
Cisco Aironet 2802E	RP-TNC	Fully supported
Cisco Aironet 3802E	RP-TNC	Fully supported
Cisco Catalyst 9115AXE	RP-TNC	Fully supported
Cisco Catalyst 9120AXE	RP-TNC	Fully supported
Cisco Catalyst 9130AXE	RP-TNC	Use RS variant for auto-detection

LED	Function	Color	Description
PWR	System Power	Green	System is powered on and operational
		Amber	Initialization or hardware issue
ANT	Antenna Presence	Green	RS EEPROM variant detected (not applicable to DW-R)
		Off	DW-R installed (normal operation)
TEMP	Thermal Monitoring	Green	Temperature within range
		Amber	High temp detected by AP sensors

Overview

The Cisco AIR-ANT2524DW-R is a dual-band omnidirectional indoor dipole antenna engineered to extend wireless coverage on both 2.4 GHz and 5 GHz frequency bands. Specifically tuned for Cisco Aironet and Catalyst series access points, it provides optimized signal propagation in high-density indoor environments. Featuring 2 dBi gain at 2.4 GHz and 4 dBi gain at 5 GHz, this antenna is ideal for balancing performance with coverage consistency across enterprise deployments. The RP-TNC male plug and articulating joint enable seamless integration into ceiling or wall-mounted APs, providing both tilt and swivel adjustments for ideal RF alignment. With no external power or software required, and full Cisco compatibility, the AIR-ANT2524DW-R supports plug-and-play deployment in commercial offices, classrooms, clinics, conference halls, and retail spaces. Its white radome enclosure ensures minimal visual impact while maintaining durable operational reliability.

Whats in the Box

1 × Cisco AIR-ANT2524DW-R Dual-Band Antenna
Regulatory and warranty documentation (if included with AP bundle)
Quick Install Note (bundled with access point only)

Use Case

Enterprise Offices – Covers floorplans with dual-band client devices across cubicles and meeting zones
Educational Institutions – Seamless indoor coverage in lecture halls, classrooms, and libraries
Healthcare Environments – Supports wireless charting and devices in patient rooms and nurse stations
Retail Stores – Ensures consistent AP-to-client signal in aisles and POS areas
Conference Rooms – Reliable wireless for presentations, VoIP, and streaming
Hospitality Suites – Wi-Fi coverage inside hotel rooms or lobby APs
Indoor Warehouses – Enhances handheld scanner connectivity along inventory lanes
Reception Zones – High-performance coverage for front office client access
Training & Lab Centers – Wi-Fi for remote desktop, simulations, or collaborative learning tools
Smart Building Infrastructure – Provides backhaul for sensors and BLE IoT systems

USP

Dual-Band Flexibility – 2.4 GHz and 5 GHz support in a single antenna
Cisco Optimized Tuning – Designed to work seamlessly with Aironet and Catalyst APs
Flexible Installation – 360° swivel and 90° tilt joint for versatile mounting
No Software Needed – Zero configuration, plug-and-play simplicity

Port Compatibility

Access Point Model	Connector	Compatibility
Cisco Aironet 2802E	RP-TNC	Fully supported
Cisco Aironet 3802E	RP-TNC	Fully supported
Cisco Catalyst 9115AXE	RP-TNC	Fully supported
Cisco Catalyst 9120AXE	RP-TNC	Fully supported
Cisco Catalyst 9130AXE	RP-TNC	Use RS variant for auto-detection

LED Behaviour

LED	Function	Color	Description
PWR	System Power	Green	System is powered on and operational
		Amber	Initialization or hardware issue
ANT	Antenna Presence	Green	RS EEPROM variant detected (not applicable to DW-R)
		Off	DW-R installed (normal operation)
TEMP	Thermal Monitoring	Green	Temperature within range
		Amber	High temp detected by AP sensors

More About Cisco AIR-ANT2524DW-R – Dual-Band Dipole Antenna (Indoor, RP-TNC)

Why Choose Cisco AIR-ANT2524DW-R?

Supports both 2.4 GHz and 5 GHz Wi-Fi bands
Engineered for seamless Cisco AP compatibility
Swivel + tilt design for deployment flexibility
Enterprise-grade build with RF tuning by Cisco
Requires no power, software, or configuration
Lightweight and low-profile for minimal visual footprint
Ideal for indoor high-density wireless environments
VSWR < 2:1 for efficient RF signal matching
Works across all major Cisco APs with RP-TNC ports
Reliable, maintenance-free performance across verticals

Next Steps

Confirm Antenna Count
Match antenna quantity to your access point’s MIMO stream count (usually 2 or 4 antennas per AP).
Choose the Right Model
- DW-R: Standard version
- DW-RS: With EEPROM for Catalyst 9100 auto-detection
- DG-R: Gray version for color matching
Verify Mounting Orientation
During site surveys, ensure vertical orientation for optimal signal propagation.
Order with AP Kits
This antenna may come bundled with APs or sold separately—ensure correct SKU when ordering.
Consult Cisco Antenna Deployment Guide
Access radiation pattern charts and best practices for mounting and environment planning.

Pre Sales Questions

We understand that making the right purchase decision is important. Below, you’ll find answers to common pre-sales questions about this product.

Can this antenna be used outdoors? +

No, it is certified only for indoor environments.

Will this antenna support Wi-Fi 6E (6 GHz)? +

No, it supports 2.4 GHz and 5 GHz bands only.

Can I use this antenna outdoors? +

No, the AIR-ANT2524DW-R is an indoor-use-only antenna. It is not weather-sealed or rated for environmental exposure, so it should be installed in indoor, temperature-controlled environments.

What is the main difference between DW-R and DW-RS models? +

The RS model has an EEPROM for AP auto-detection in some Catalyst models.

Is there any software configuration required? +

None. The antenna is plug-and-play.

What mounting angles are supported? +

The articulated base allows 360° swivel and 90° tilt for flexible positioning.

What is the expected coverage radius? +

Typical indoor range is 8–20 meters depending on the AP’s output and obstructions.

What access points are compatible with this antenna? +

All Cisco APs with RP-TNC connectors, including 2800, 3800, 9105AXE, 9120AXE, 9130AXE.

Can it be used with non-Cisco APs? +

Physically yes (if RP-TNC is supported), but performance is optimized for Cisco.

Is this antenna detachable? +

Yes, it can be removed and reoriented as needed.

Is it PoE-powered or externally powered? +

Neither. It draws no power-it’s a passive component.
